electrical system

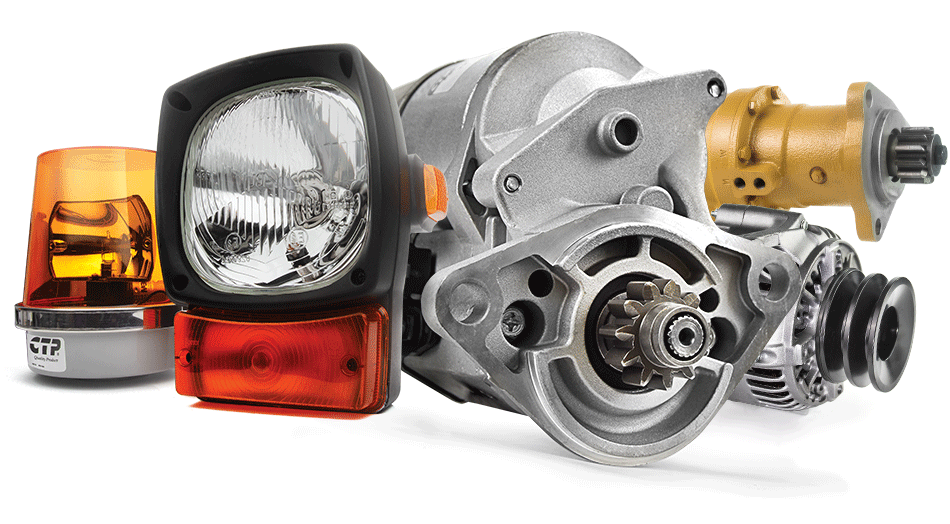

ELECTRICAL PARTS

Tested at our facilities to guarantee their proper working condition, our heavy equipment parts, including electrical parts, are built to last and work in the most extreme environmental conditions.

Download Fact Sheet
air conditioning compressor

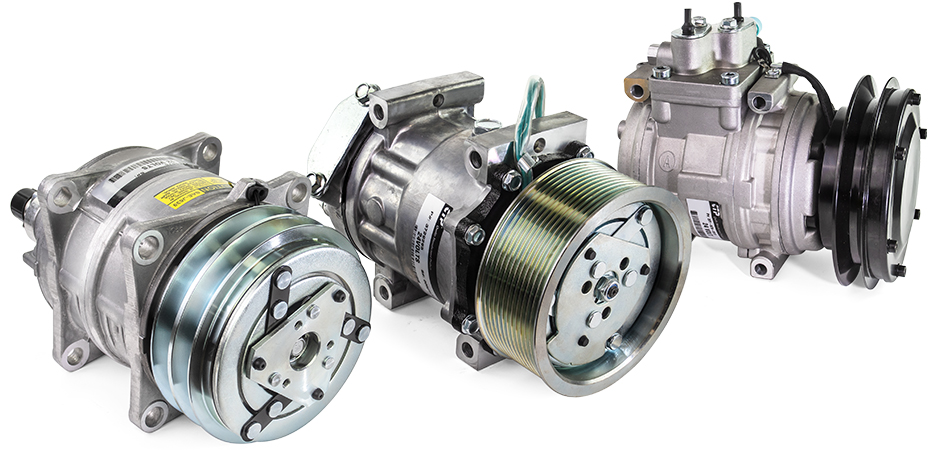

AIR CONDITIONING COMPRESSORS

The primary role of the air conditioning compressor is to compress and circulate the refrigerant to the condenser, facilitating the absorption of heat from the system. Regarded as the central component of the air conditioning (A/C) system, it is pivotal in the system’s overall functionality. Our air conditioning compressors are designed to ensure your system's continual and efficient operation.
air compressor

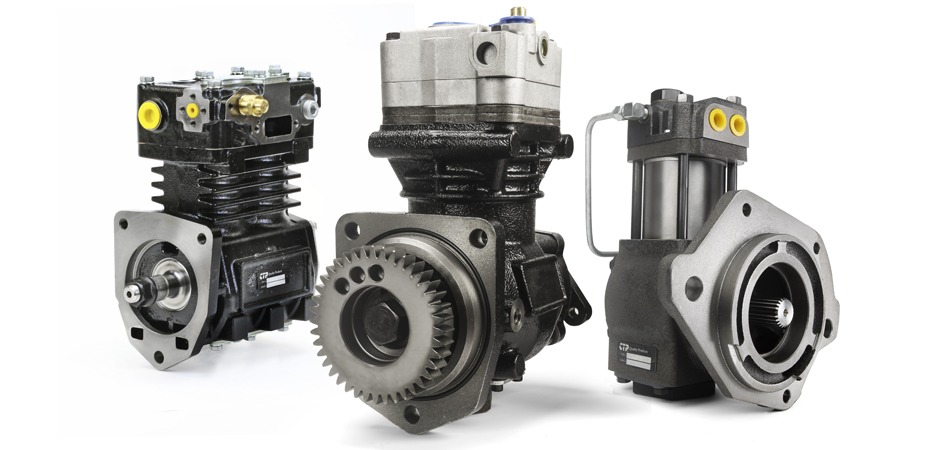

AIR
COMPRESSORS

100% cast iron cylinders and crankcases ensure vibration-free operation and stable crankshaft alignment. Precision-balanced solid cast iron crankshaft. Top-quality compression and oil rings ensure superior performance with low oil carryover. Our air compressors are engineered to provide years of reliable service, better oil control, cleaner air, greater reliability, and less vibration.
alternators

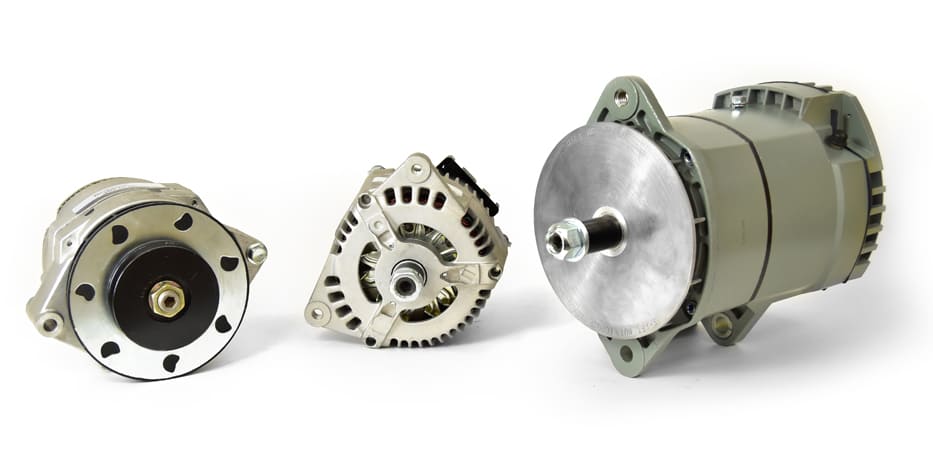

ALTERNATORS

TGS alternators use the most modern technology to provide unmatched performance for a reliable charging system. They are assembled only with premium components to ensure and meet strict quality manufacturing standards. They are performance-tested to guarantee long-term, dependable service.
starting motors

ELECTRICAL STARTING MOTORS

Our starting motors are gauged, sorted, and tested to ensure they meet strict quality standards. We offer 37 MT, 40 MT, 42 MT, and 50 MT series starters, which provide multi-position drive-end housings that can be rotated to match your machine’s solenoid position. The following starting motors use a semi-solid solenoid, which offer more reliable solenoid contacts.
relays

RELAYS

The quality and value of TGS relays allow heavy-duty machines and engines to control a circuit using a low-power signal and enable several circuits to be controlled using a uniform signal.
circuit breaker

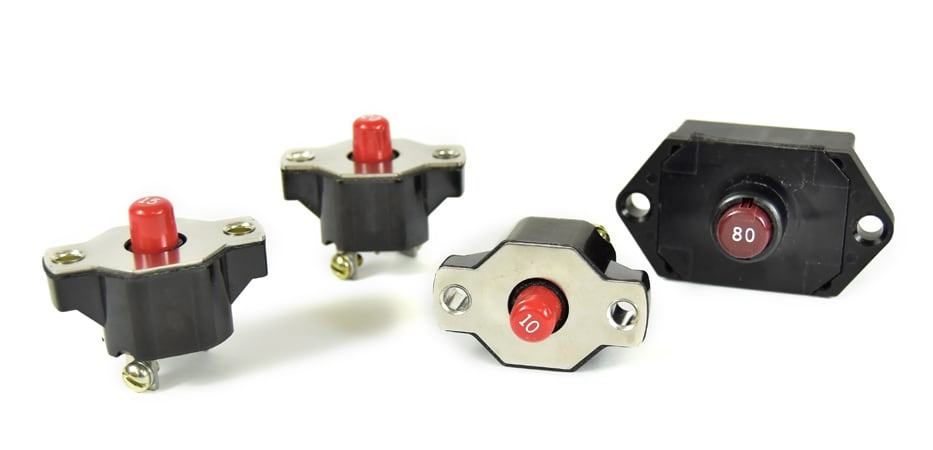

CIRCUIT BREAKER

Circuit breakers can degrade over time. This can cause them to trip continuously under normal load or, worse yet, not trip at all during an electrical overload, damaging the wiring harness and possibly causing an electrical fire. TGS offers the highest-quality circuit breakers, providing long-lasting protection for your equipment’s electrical system, even in harsh conditions.
alarms and horns

ALARMS &
HORNS

With our alarms and horns, you can safely warn others and call attention to your surroundings. They provide an increased measure of protection and give an audible signal suitable for the conditions.
batteries

BATTERIES

TGS batteries are specifically engineered to endure the repetitive starting and stopping demands multi-stop vehicles face. They deliver ample cold-cranking power to facilitate effortless starting while also providing sufficient reserve power to meet the cycling requirements of commercial applications.
fuses

FUSES

Equipment fuses are designed to protect electrical wiring. They offer protection against overcurrent and short-circuiting, disconnecting the circuit when subjected to a potentially dangerous current level. They are commonly known as automotive fuses. Various types and sizes are available, including glass tube, cartridge, spade regular, and spade mini. Each is best suited for different electrical applications.
- Blade type regular
- Blade type mini
- Glass tube
- Cartridge type
hour digital meters

HOUR METER KIT

The TGS digital hour meters features a digital display that records in hours and tenths. It records up to 100,000 hours and only records in the run position. The round gauges use a standard 2” opening. Some kits include required hardware for ease of installation.
- Digital meter (round)
- Digital meter kit (round)
- Digital meter (square)
- Miscellaneous
ignition-switches

IGNITION SWITCHES

Give your machine the right start with quality TGS ignition switches. * All switches include the key.
The key is also sold separate
lights

LIGHTS

Now you can work through the night with our wide selection of TGS lamps and bulbs. Our new line of LED lamps offer optimal performance guaranteed to light up any jobsite.
- LED lamp group
- Driving & traffic lights
- Sealed lamps
- Lamp assembly kits
- Lamp groups
- Signal-stop lamps and lenses
- Lamp bulbs
gauges

GAUGES

We offer a wide spectrum of gauges for all your machine’s needs. From electrical temperature gauges to mechanical pressure gauges, our state-of-the-art technology allows you to take any needed measurements with accurate results.
linear-actuator

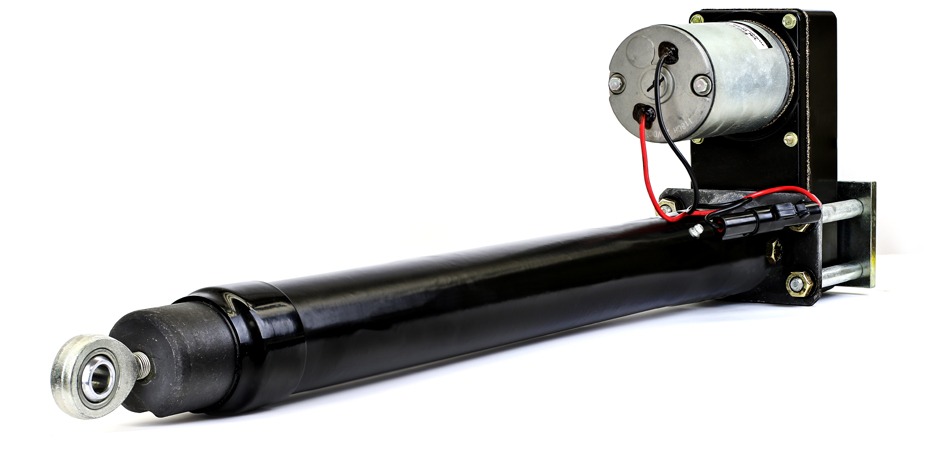

LINEAR ACTUATORS

TGS linear actuators feature:
- Die-cast aluminum power heads available in several gear ratios able to handle loads up to 4000 lbs.
- Motor voltages include 12, 24, 36 volt DC or 110 and 220 volt AC.
- Acme and ball screws are available.
- Dynamic load capacity of 3000 lbs.
- Static load capacity 5000 lbs.
- Temperature Range: 90°C, 194°F maximum to 35°C, -30°F minimum.
glow plugs

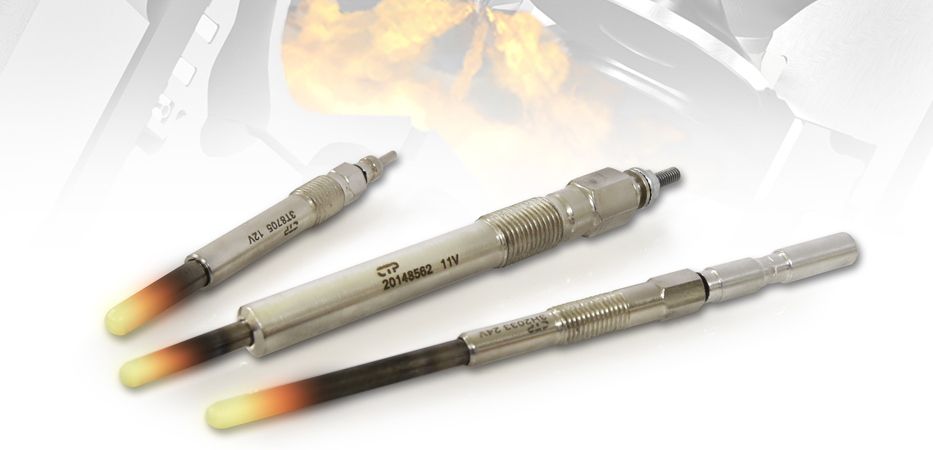

GLOW PLUGS

Diesel engines ignite and operate using the heat of combustion. During initial start-up and in cold weather, glow plugs are essential for starting a diesel engine. Our suppliers engineer and manufacture glow plugs to withstand the rigorous demands of today’s diesel engines.
motors

MOTORS

We offer a selection of governor motors. The governor is one of the most critical components of a diesel engine. It controls the engine speed by limiting the amount of fuel delivered by the injection system. It is designed to maintain a constant engine speed regardless of load variation.
kickout-positioner

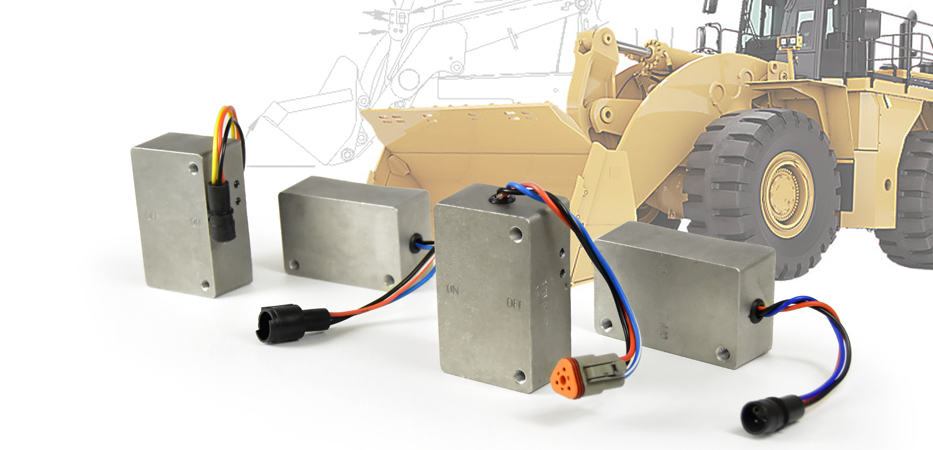

KICKOUT & POSITIONER MAGNETIC SWITCHES

Automatic, electronic lift kickout and bucket positioners allow the operator to concentrate on positioning the machine rather than the bucket, resulting in higher efficiency for greater productivity. TGS has magnetic switches available for most wheel and track type loaders.
solenoids

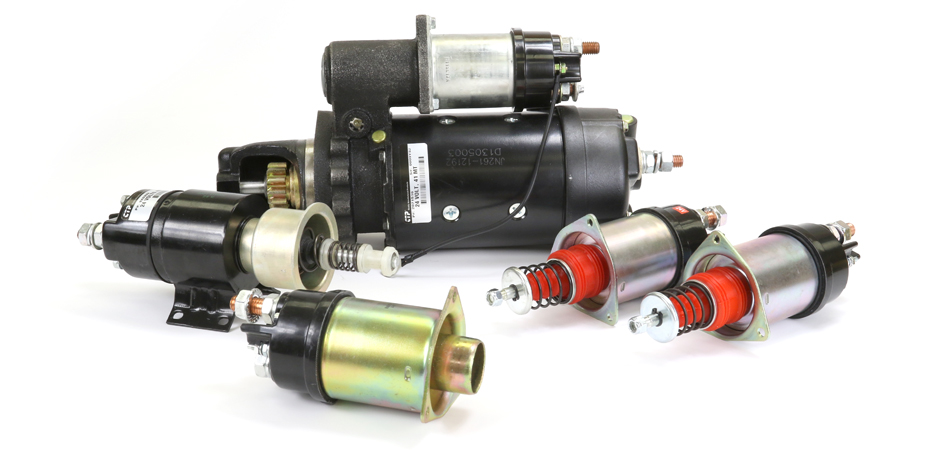

SOLENOIDS

Our solenoids are incredibly versatile and useful. Offering long service and value, they generate an essentially uniform magnetic field when currents run through it and convert electric current to mechanical action, providing a simple means to generate a strong magnetic field.
- Semi solid solenoids
- Starting motor solenoids
- Fuel shut off
speed sensors

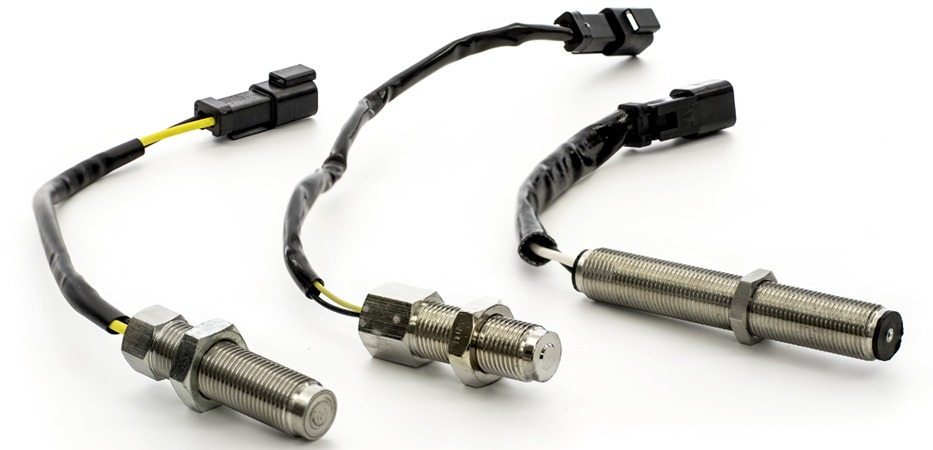

SPEED SENSORS

Accurate speed measurement is required for many engine-driven applications. TGS speed sensors provide an accurate and reliable mean of converting rotational speed into a signal that can be measured by electronic control equipment.

A speed sensor is an AC generator. It is normally installed into the flywheel housing of an internal combustion engine, to ensure the starter ring gear acts upon it to generate a voltage pulse each time a gear tooth passes the end of the sensor.
sensors

SENSORS

Sensors are heavy equipment parts that perform system diagnostics. They are necessary for the proper operation of the ECM (electronic control module) and offer a timely warning to the operator of possible malfunctions. Data from the sensors monitor fluid levels, position, pressure, speed, and temperature of the equipment system devices.
warning lights

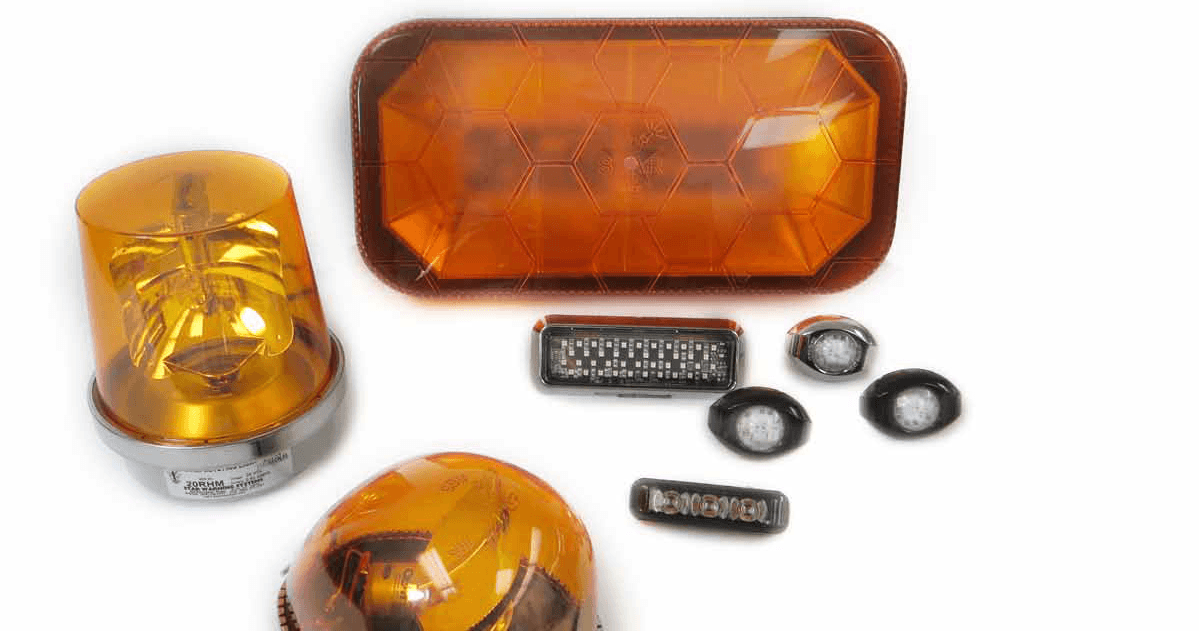

WARNING LIGHTS

Our range of warning lights are engineered to offer high quality LED lighting technology. All warning lights are tested for performance to provide operators with products made with the highest SAE (Society of Automotive Engineers) standards. These optical warning devices cover a full range of product specifications including light output, weather resistance, vibration, shock, dust, UV, color, variable environment and proper measurement techniques.
switches

SWITCHES

- Ignition switches
- Toggle switches
- Flow switches
- Rotary switches
- Horn
- Liquid level switches
- Push button switches
- Capillary switches
- Limit switches
- Starter solenoid switches
- Pressure sensing switches
- Temperature sensing switches
- Specialty switches
terminal-connector-kit-dt-f-720-228

TERMINAL CONNECTOR KIT DT

Deutsch™ DT are an environmentally-sealed connectors designed specifically for cable to cable applications. Typical applications include on the chassis, in the cab, under the hood, on the engine and the transmission. These connectors provide an excellent connection for signal level circuits in harsh environmental conditions, where even a small degradation in connection may be critical.
terminal-connector-kit-f-720-226_ctp_costex

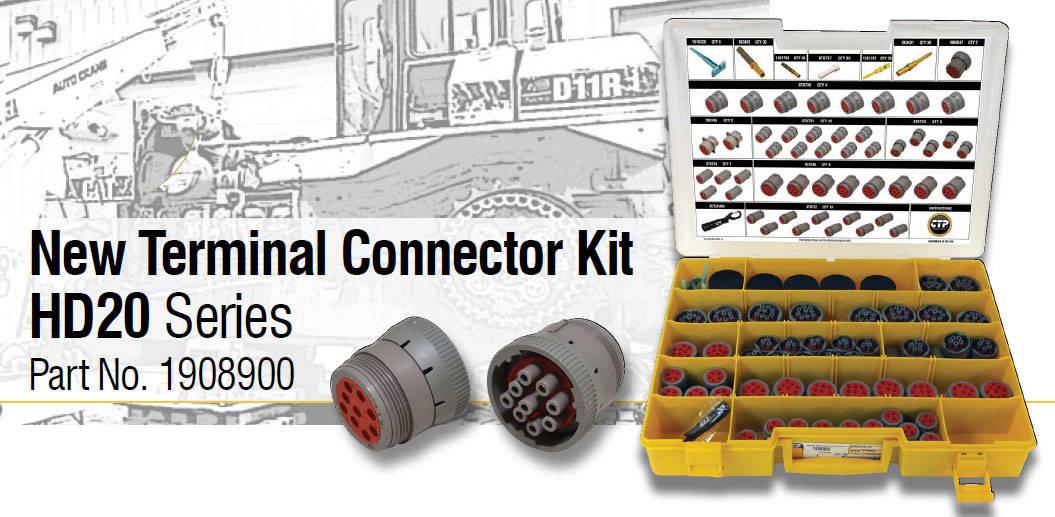

TERMINAL CONNECTOR KIT HD20

The Deutsch™ HD (heavy duty) connector series was developed with the heavy-duty equipment and off highway industry in mind. HD series connectors are a thermoplastic cylindrical coupling that offers arrangements from 3 to 9 cavities for heavy-duty applications. These connectors are easy to install, environmentally sealed and compact in size. They are a simple, field serviceable alternative to a repair splice.
